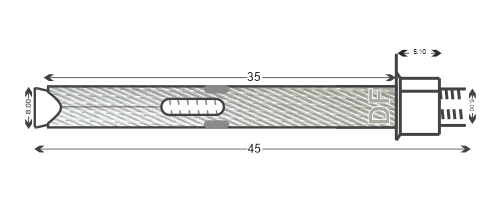

Product Description Diameter mm Length mm Galvanization Weight g
Diamond Frames Anchor Fastener 8 45 Zinc Coating Avg 5 Micron 15
Material Bolt Nut Sleeve Galvanization
Diamond Frames Anchor Fastener SAE 1018 SAE 1018 CR 1 Grade Avg 5 Micron
Recommended Load Pull out Load Shear Load
Diamond Frames Anchor Fastener 7.4kN for M20 concrete grade 6.7kN for M20 concrete grade

Features

  • Fast & efficient, leading to easy installation
  • High resistance to corrosion due to zinc galvanization
  • Cost & Time efficient

Installation Guidelines

While working on the site it is crucial that health and safety parameters are duly met. The team should be in protective clothing and necessary safety equipment. General practices and site safety measures are specified here, however due diligence needs to be provided to the unique requirements and guidelines issued at the site.
