| Product Description | Width mm | Thickness mm | Length MM | Weight kg |
|---|---|---|---|---|

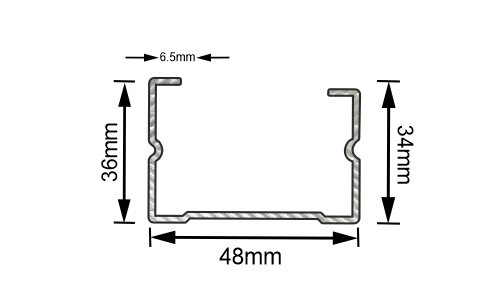

Diamond Frames Horizontal Connector 48mm
|
48 | 0.55 | 675 | 0.350 |

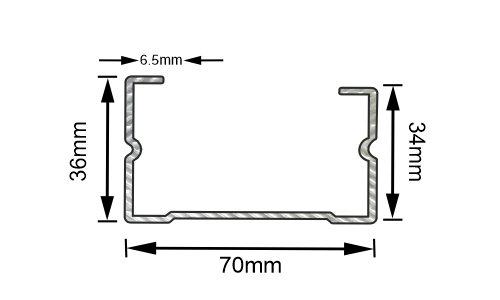

| Diamond Frames Horizontal Connector 70mm
|
70 | 0.55 | 675 | 0.405 |

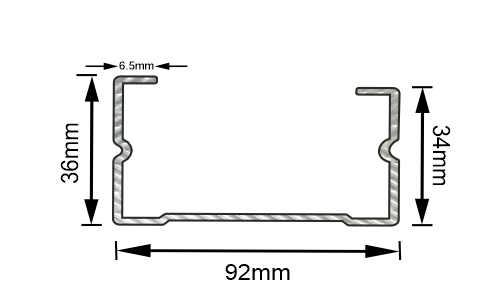

| Diamond Frames Horizontal Connector 92mm
|
92 | 0.55 | 675 | 0.463 |
| Horizontal Connector | Cross Sectional Area | Moment of Inertia | Section Modulus | ||||
|---|---|---|---|---|---|---|---|
| Ixx | Iyy | Sxx | Syy | ||||
| 48mm | 72.6 mm^2 | 29217.585 mm^4 | 13794.031 mm^4 | 1280.6 mm^3 | 489.07 mm^3 | ||

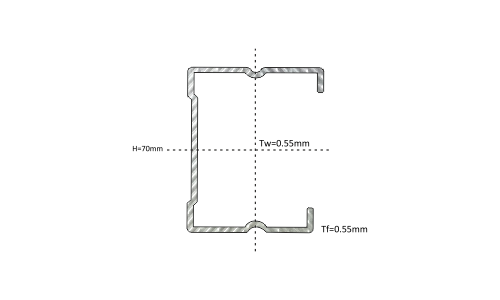

| 70mm | 84.7 mm^2 | 68244.585 mm^4 | 15655.508 mm^4 | 2020 mm^3 | 518.62 mm^3 | ||

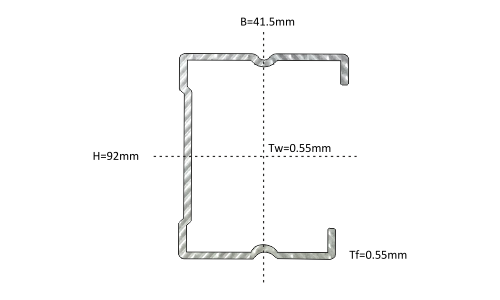

| 92mm | 95.645 mm^2 | 126353.03 mm^4 | 16498.03 mm^4 | 2823.3 mm^3 | 526.4 mm^3 | ||
